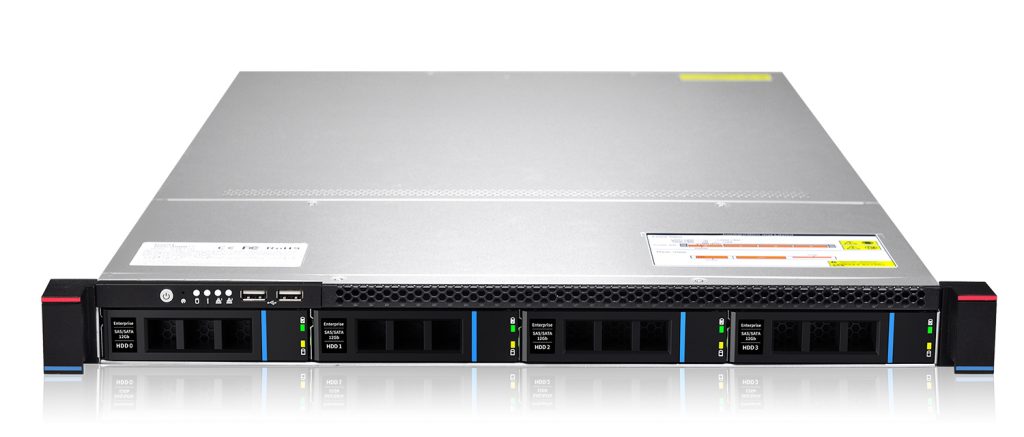

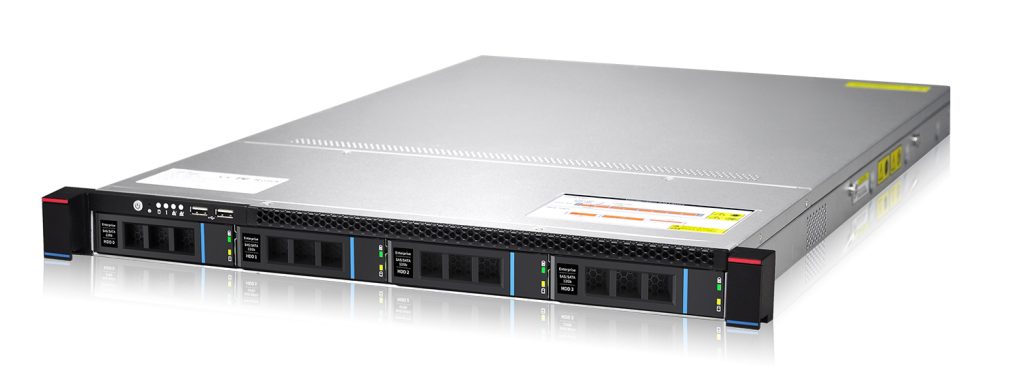

BMS 1104-670(R)

4x 3.5" hot-swap HDDs 지원 1U Server chassis

BMS 1104-670(R)

  • 1U Rackmount server chassis series with 670mm depth
  • Serverboard support up to standard EEB 12″x13″, backward supports to CEB and below
  • Supports 1xfull-height full-length PCIe cards
  • Front 4×3.5″ hot-swap HDDs (2.5″ HDD compatible) and 2×2.5″ internal HDDs

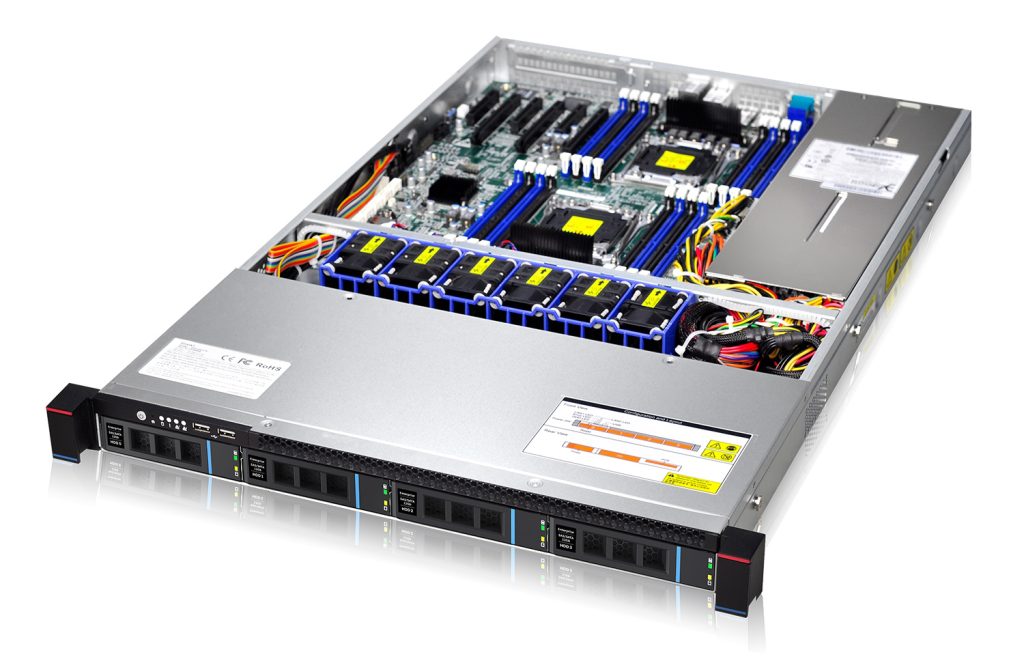

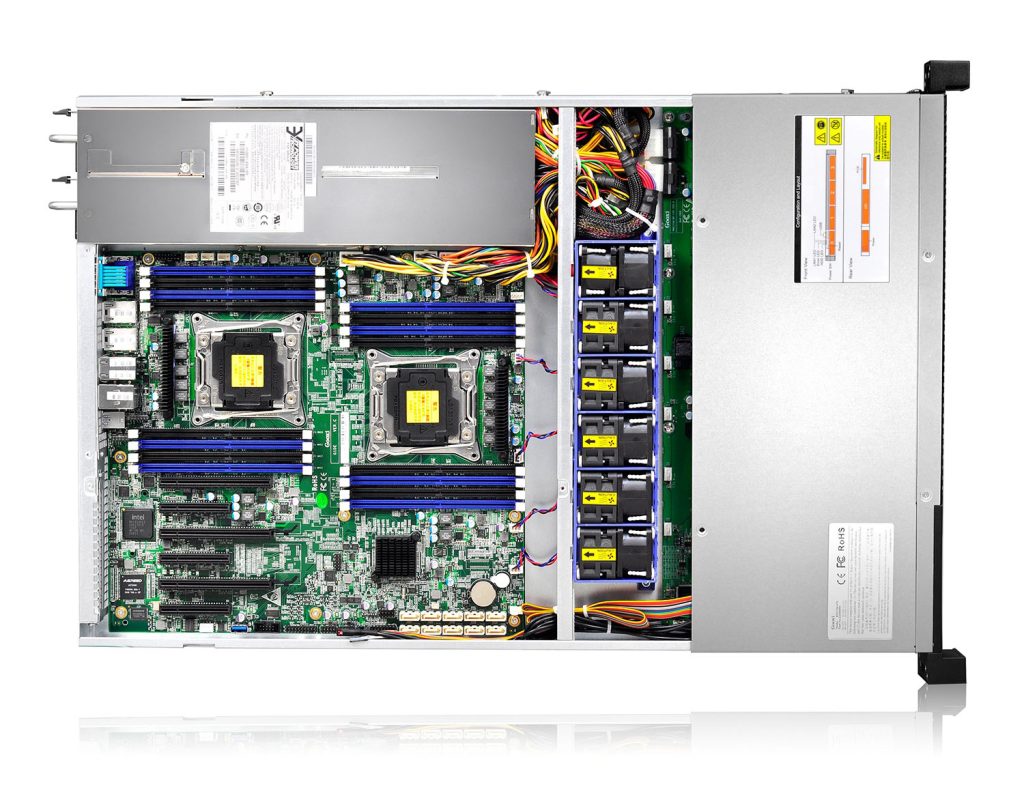

  • High-performance 4×4028 cooling fans with anti-vibration mechanism and optional up to 6×4056 middle fans
  • Smart system fan controlled by intelligent temperature management
  • 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
  • Supports 1U Single PSU or 1+1 Redundant PSU
Specifications
BMS 1104-670(R)
Chassis Form Factor
  • 1U Rackmount
Serverboar
  • EEB (12″x13″), CEB (12″x10.5″), ATX (12″x9.6″) and micro ATX (9.6″x9.6″)
PSU Form Factor
  • 1U Single or 1+1 Redundant
Backplane SGPIO
  • Supports
HDD Backplan
  • 4-port 12Gb/s SAS passive backplane
HDD Drive Hot-swap
  • Supports SAS and SATA HDD, Front 4×3.5″ Hot-swap HDDs (2.5″ HDD compatible); Internal 2×2.5″ HDDs
Cooling Fans
  • Default 4×4028 middle fans (Max. 6×4056 by option)
Temperature Control
  • Supports system smart fan control by Server board
Expansion Slots
  • Default 1x full-height PCIe cards support
Indicator
  • 2x USB 2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness
  • 1mm SGCC
Net Weight
  • 7.3kg
Chassis Dimensions (HxWxD)
  • 670mm x 433mm x 43mm
