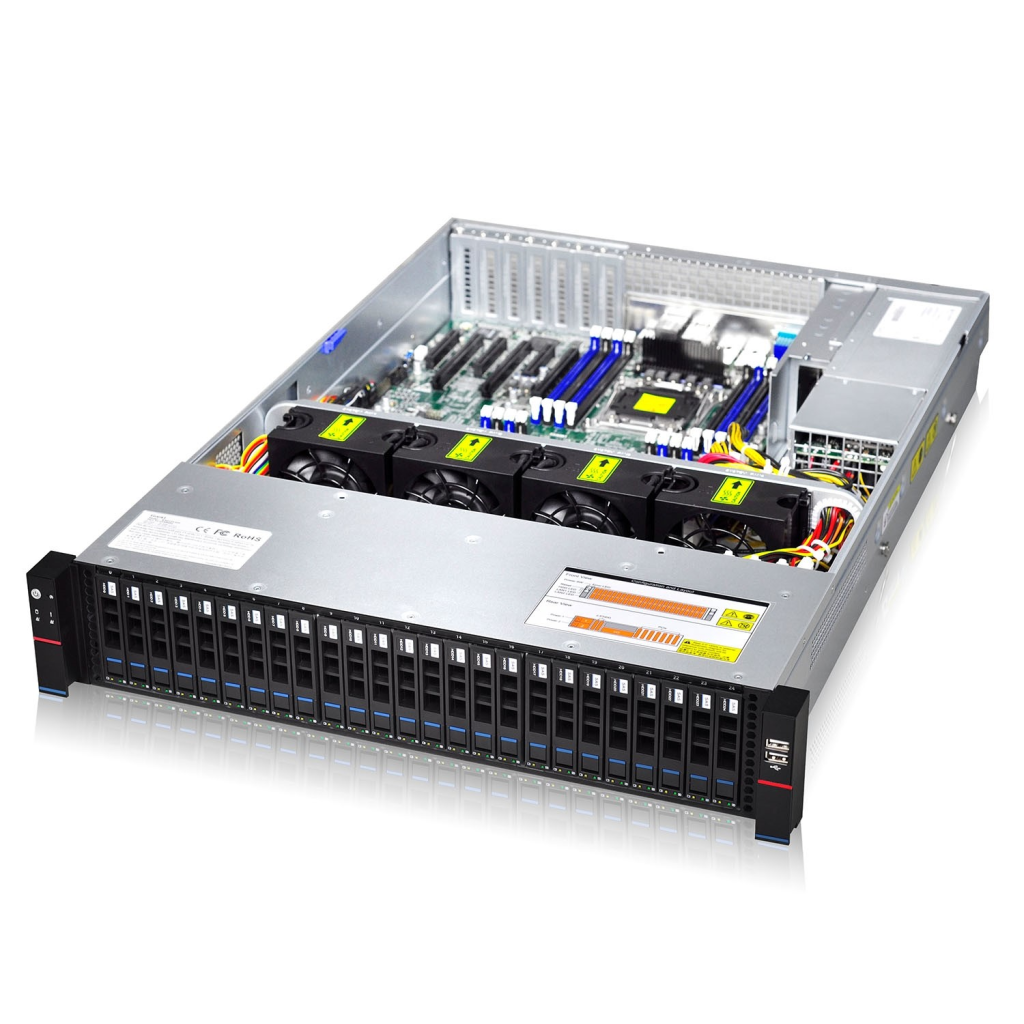

25x 2.5" hot-swap HDDs 지원 2U Server chassis

BMS 2125-620

2U Rackmount server chassis series with 620mm depth
Serverboard supports up to standard EEB 12″x13″, backward supports to CEB and below
Supports default 7x low-profile or optional 3x full-height full-length PCIe cards
Front 25x 2.5″ hot-swap HDDs and rear 2×2.5″ hot-swap HDDs
High-performance 4x 8038 cooling fans with anti-vibration mechanism
Smart system fan controlled by intelligent temperature management
12Gb/s SAS Expander backplane with SGPIO, compatible with SAS and SATA HDDs

Specifications

BMS 2125-620
Chassis Form Factor	2U Rackmount
Serverboar	EEB (12″x13″), CEB (12″x10.5″), ATX (12″x9.6″), and microATX (9.6″x9.6″)
PSU Form Factor	2U Single or 1+1 Redundant (CRPS)
Backplane SGPIO	Supports
HDD Backplan	25-port 2.5″ 12Gb/s SAS Expander backplane 2-port 2.5″ 12Gb/s SAS backplane (option)
HDD Hot-swap	Supports SAS and SATA HDD
Cooling Fans	Default 4×8038 Hot-swap middle fans
Temperature Control	Supports system smart fan control by Serverboard
Expansion Slots	Default 7x low-profile PCIe Cards or 3x full-height PCIe Cards support
Indicator	2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Metal Thickness	1mm SGCC
Net Weight	10.5 KG
Chassis Dimensions	902591228mm(DxWxH）
