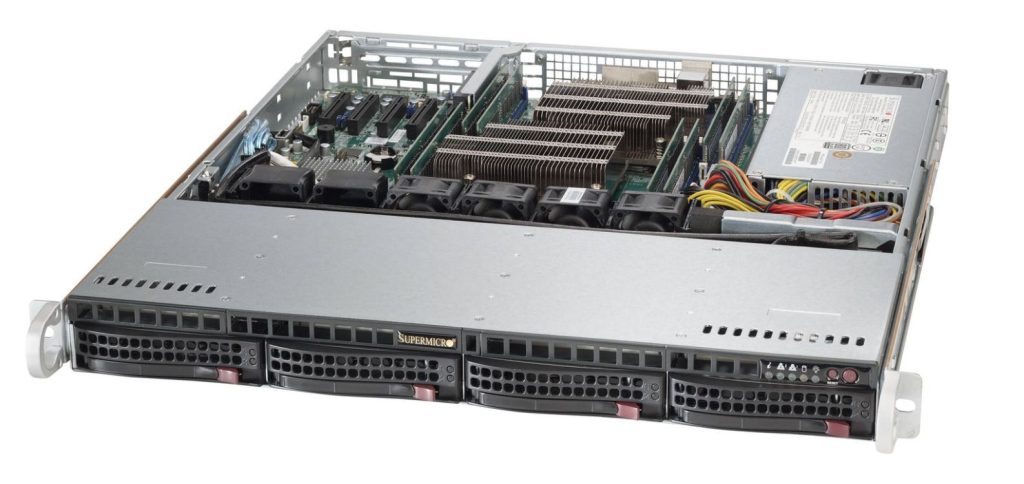

BMS 813MFTQC-350CB2

4 x 3.5" hot-swap HDD 지원 1U Server chassis

BMS 813MFTQC-350CB2

  • 1U Chassis for motherboard support size: (12″ x 10″) (9.6″ x 9.6″)
  • 4 x 3.5″ hot-swap SAS/SATA
  • 1U 4-Port 12Gbps Backplane Support 4×3.5
  • 1U 350W Multi-output power supply Platinum level
  • 1 full height expansion slot(s)
  • 4 x 40x28mm PWM fan(s)
  • Optional 2 x 40x28mm PWM fan(s)
Specifications
Product SKUs
  • SuperChassis 813MFTQC-350CB2



Form Factor
  • 1U chassis support for motherboard size 12″ x 10″, 9.6″ x 9.6″



Processor Support
  • Dual and Single Intel® and AMD processors



Dimensions
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 19.85″ (503 mm)
Gross Weight
  • 31 lbs (14.06 kg)
Available Color
  • black



Expansion Slots
  • 1x Full-height expansion slot(s)



Drive Bays
  • 4x 3.5″ hot-swap SAS/SATA drive bay



Backplane
  • 4-Port 1U 12Gbps Backplane Support 4×3.5



Peripheral Drives
  • Optional 1x Slim DVD-ROM Drive

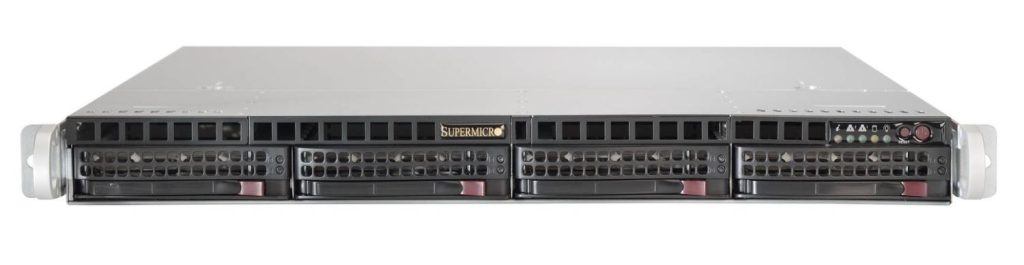

Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • 2 Network Activity LEDs



Systems Cooling
Fans
  • Optional 2x 40x28mm PWM fan(s)
  • 4x 40x28mm PWM fan(s)



Operating Environment (System)
Operating Temperature Range
  • 5°C – 35°C (41°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)



Power Supply
1U 350W Multi-output power supply Platinum level
Power Efficiency
  • 93%
Total Output Power and Input
  • 350W with Input 100 – 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 180 x 100 x 40 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.2A / Min: 0A
+12V
  • Max: 29A / Min: 0.5A (100Vac – 240Vac)
+5V
  • Max: 15A / Min: 0.2A
+3.3V
  • Max: 12A / Min: 0.2A
+5Vsb
  • Max: 3A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified



Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
