BMS 815TQC-R706WB2

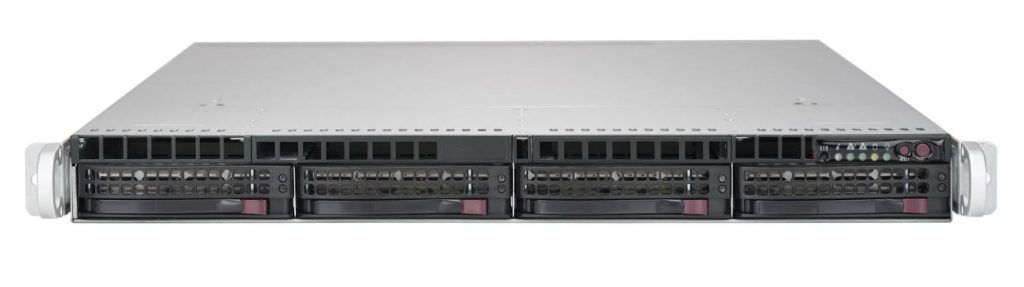

4 x 3.5" hot-swap HDD 지원 1U Server chassis

BMS 815TQC-R706WB2

  • Optimized for X11 WIO (W series) motherboards, support MB size up to 12.3″ x 13.4″
  • 4 x 3.5″ hot-swap SAS/SATA SAS or enterprise SATA HDD only recommended
  • 1U 4-Port 12Gbps Backplane Support 4×3.5
  • 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
  • 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
  • 4 x 40x56mm counter-rotation PWM fan(s)
Specifications
Product SKUs
  • SuperChassis 815TQC-R706WB2



Form Factor
  • Optimized for X11 WIO (W series) motherboards, support MB size up to 12.3″ x 13.4″



Processor Support
  • Dual and Single Intel® and AMD processors



Dimensions
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Gross Weight
  • 36 lbs (16.33 kg)
Available Color
  • black
Expansion Slots
  • 1x Low-profile expansion slot(s)
  • 2x Full-height, Full-length expansion slot(s)



Drive Bays
  • 4x 3.5″ hot-swap SAS/SATA drive bay
  • SAS or enterprise SATA HDD only recommended



Backplane
  • 4-Port 1U 12Gbps Backplane Support 4×3.5



Front Panel
Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED
Systems Cooling
Fans
  • 4x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range
  • 5°C – 35°C (41°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)



Power Supply
1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
Power Efficiency
  • 94%
Total Output Power and Input
  • 750W with Input 200 – 240Vac
  • 700W with Input 100 – 140Vac
  •
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 320 x 54.5 x 40.25 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 62A / Min: 0.5A (200Vac – 240Vac)
  • Max: 58A / Min: 0.5A (100Vac – 140Vac)
+5Vsb
  • Max: 3A / Min: 0A
Power Distributor
  • PDB-PT112-S2424
  • O/P: 12V/54
  • +5V Max: 25A
  • +3.3V Max: 25A
  • -12V Max: 0.6A
Certification
  • Platinum Certified  Platinum Certified



Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
