BMS R283-S94

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 12+2-Bay SATA/SAS Platinum

BMS R283-S94

  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" SATA/SAS hot-swap bays
  • 2 x 2.5" SATA/SAS hot-swap bays on the rear side
  • 4 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 1300W 80 PLUS Platinum redundant power supply
Specifications
  • BMS R283-S94
Chassis Form Factor
  • 2U

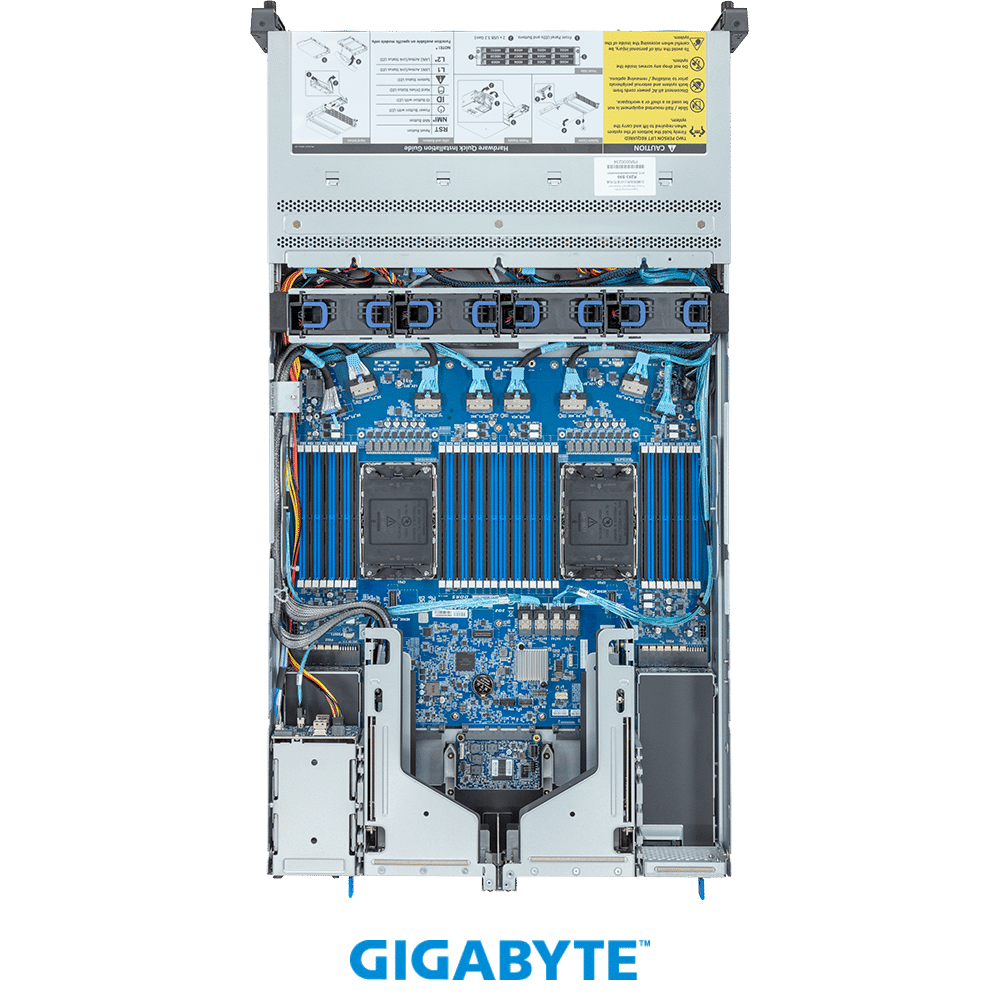

Serverboard
  • MS93-FS1
PSU Form Factor
  • Dual 1300W 80 PLUS Platinum redundant power supply
Drive Backplane

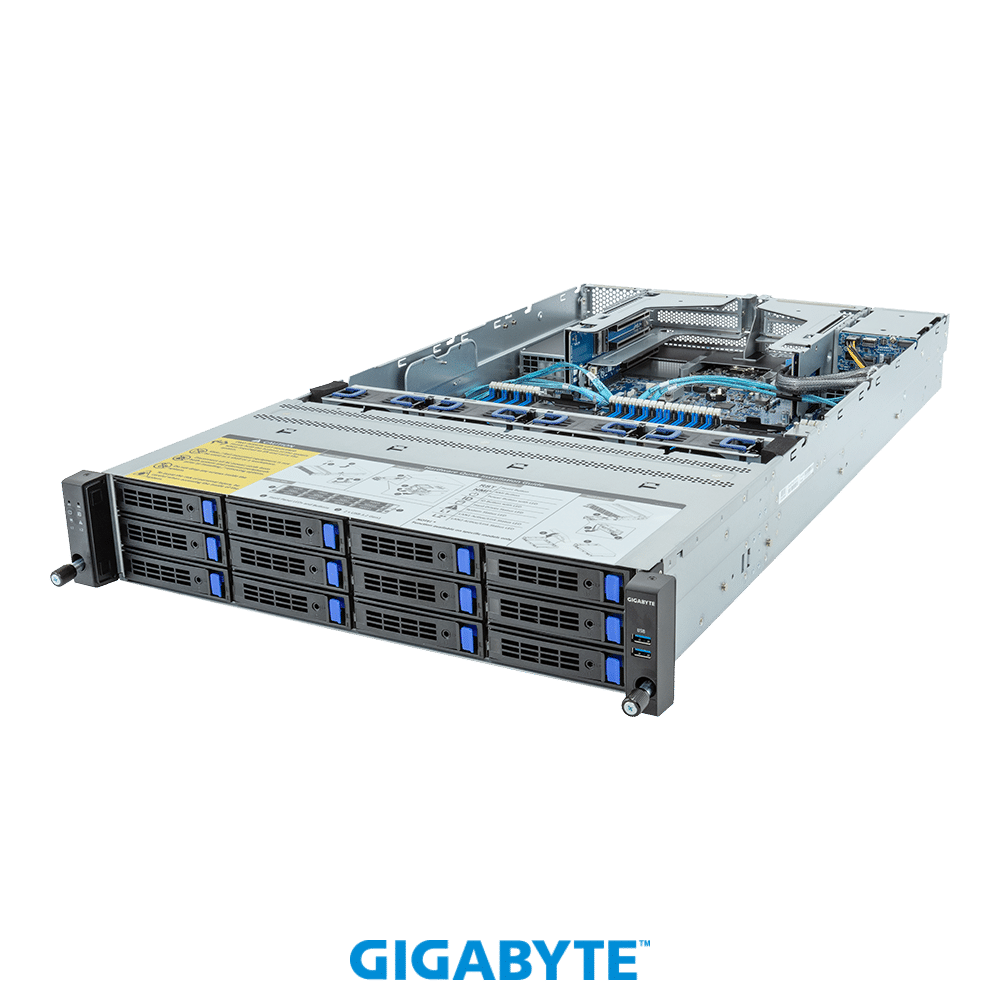

  • Front hot-swap:
  • 12 x 3.5″/2.5″ SATA/SAS
  • Rear hot-swap:
  • 2 x 2.5″ SATA/SAS
Hot-swap Drive Bays
  • 12 x Front Hot-swap Bays
  • 2 x Rear Hot-swap Bays
Cooling Fans
  • 4 x 80x80x38mm System Fans
Temperature Control
  • Supports system smart fan control by Serverboard
Expansion Slots
  • Riser Card CRS101J:
  • – 1 x FHHL x16 (Gen5 x16), from CPU_0
  • Riser Card CRS101Q:
  • – 1 x FHHL x16 (Gen5 x16), from CPU_1
  • Riser Card CRS201A:
  • – 1 x FHHL x16 (Gen5 x16), from CPU_0
  • Riser Card CRS201B:
  • – 1 x FHHL x16 (Gen5 x16), from CPU_1
  • 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
  • – Supports NCSI function
  • 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
  • – Supports NCSI function
Indicator
  • Front I/O: 2 x USB 3.2 Gen1 ports (Type-A), 1 x Power button with LED, 1 x ID button with LED, 1 x NMI button, 1 x Reset button, 2 x LAN activity LEDs, 1 x Storage activity LED, 1 x System status LED

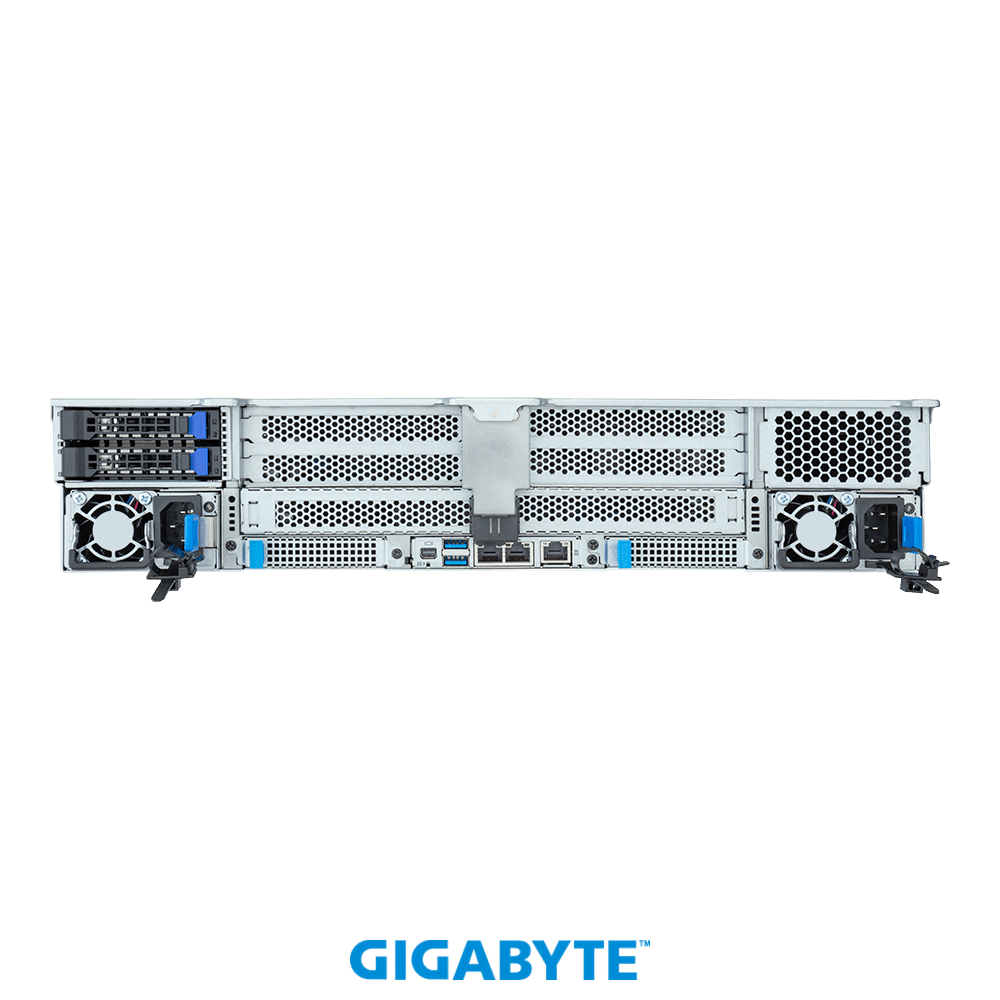

  • Rear I/O:
    G-SCM board – CDCR112: 2 x USB 3.2 Gen1 ports (Type-A), 1 x Mini-DP, 2 x RJ45 ports, 1 x MLAN port, 1 x ID LED
Weight
  • Net Weight: 28 kg
Chassis Dimensions (WxHxD, mm)
  • 438 x 87.5 x 815 mm
