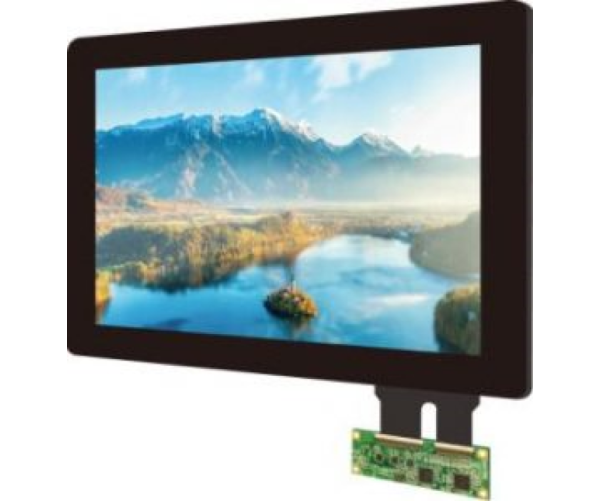

10.1″ Touch Display

정전 용량 방식 터치 솔루션이 포함 된 10.1 ” 산업용 등급 LCD 디스플레이 제품입니다.

Features

10.1″ LCD with LED backlight
Projected Capacitive Touch Solution (Touch panel + Controller + Firmware + Driver + Utility)
Optical Bonding
Color Glass surface finish (optional)
Value added (optional)
Low Reflective
Anti-UV
Virtual Key

Specifications

10.1″ Touch Display
LCD Panel	Display Size: 10.1″ Resolution: WVGA, 800 x 480 Viewing Angle (H/V): 130° / 110° Brightness (cd/m²): 300 Backlight Life (hrs): 20,000 Contrast Ratio: 500 : 1 Colors: 262K Signal Interface: Parallel RGB (1ch, 6-bit), 60 pins
Touch Screen	Touch Type: Projected Capacitive with COF tail AMT Part NO.: 92-P3021-C2A Controller: PenMount 2300 COF Interface: USB / UART / I²C Surface Finish: Clear or Color Décor Glass
Environment	Operating Temperature: -10 ~ 60° C Storage Temperature: -20 ~ 70° C
