4개의 GMSL2 카메라 및 150W NVIDIA® RTX GPU를 지원하는 견고한 팬리스 GPU 컴퓨터

Nuvo-9154GC 4개의 GMSL2 카메라 및 150W NVIDIA® RTX GPU 지원 팬리스 컴퓨터 (New!)

Supports Intel® 14th/13th/12th-Gen Core™ 24C/ 32T 35W/ 65W CPU
Supports NVIDIA® RTX™ series GPU card up to 150W TDP
Supports 4x GMSL2 cameras Driver-ready for selected GMSL2 cameras (Linux only)
1x GPS PPS input and 1x GPS PPS output for frame synchronization calibration
2x CAN 2.0, 5x 2.5GbE and 1x GbE with PoE+ (ports 3 to 6)
1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
-25°C to 60°C wide temperature rugged operation
8V to 48V wide-range DC input with built-in ignition power control

Overview

Introduction

Neousys의 산업용 Fanless PC Nuvo-9154GC는 창고, 물류 및 농업 분야의 자율 이동 로봇(AMR)을 위해 설계되었습니다. 온보드 GMSL2 커넥터, Intel® 14세대/13세대/12세대 플랫폼 및 150W NVIDIA® Blackwell GPU를 탑재하여 실시간 다중 센서 융합 및 복잡한 공간 경로 계획을 위한 최적의 하드웨어 기반을 제공합니다.

Intel® 14세대/13세대/12세대 프로세서는 물류 자동화 분야에서 SLAM 안정성 및 LiDAR 기반 경로 계획을 위한 탁월한 연산 성능을 제공합니다. 150W NVIDIA® GPU(최대 19.2 TFLOPS, Blackwell, FP32)와 결합된 산업용 Fanless PC Nuvo-9154GC는 고정밀 객체 인식 및 윤곽선 분석을 가능하게 합니다.

산업용 Fanless PC Nuvo-9154GC는 엄선된 2MP~8MP 자동차용 GMSL2 카메라에 대한 드라이버 지원을 제공하며, I2C 구성을 통해 목록에 없는 다양한 해상도의 GMSL2 카메라를 통합할 수 있는 전용 포팅 모드도 갖추고 있습니다.

컴팩트한 크기에도 불구하고 산업용 Fanless PC Nuvo-9154GC는 6개의 USB 3.2 포트, PoE+를 지원하는 6개의 2.5GbE/GbE 포트, 그리고 CAN 2.0을 제공합니다. 내장된 mini-PCIe 및 M.2 B-key 소켓은 Wi-Fi, 4G LTE, 5G 연결을 원활하게 지원합니다. 극한 환경에서도 견딜 수 있도록 설계된 이 제품은 FAKRA 커넥터와 전용 GPU 브래킷을 사용하여 충격 및 진동 저항성을 크게 향상시켰습니다. 또한, 광범위한 DC 입력 전압과 넓은 작동 온도 범위를 갖춘 산업용 Fanless PC Nuvo-9154GC는 까다로운 AMR 환경에서도 장기간 안정적인 작동을 보장합니다.

Nuvo-9154GC is engineered for AMRs in warehousing, logistics, and agriculture. Featuring on-board GMSL2 connectors with an Intel® 14th/13th/12th Gen platform and a 150W NVIDIA® Blackwell GPU, it is the ultimate hardware foundation for real-time multi-sensor fusion and complex spatial path planning.

Intel® 14th/13th/12th Gen processors deliver exceptional computation for SLAM stability and LiDAR-based path planning in logistics automation. Combined with a 150W NVIDIA® GPU (up to 19.2 TFLOPS, Blackwell, FP32), Nuvo-9154GC enables high-precision object recognition and contour analysis.

Nuvo-9154GC provides driver-ready support for selected 2MP to 8MP automotive GMSL2 cameras, and it also has a dedicated porting mode to integrate unlisted GMSL2 cameras with varying resolutions via I2C configurations.

Despite its compact footprint, the Nuvo-9154GC offers 6x USB 3.2, 6x 2.5GbE/GbE with PoE+, and CAN 2.0. Internal mini-PCIe and M.2 B-key sockets ensure support for seamless Wi-Fi, 4G LTE, and 5G connectivity. Designed for harsh conditions, it utilizes FAKRA connectors and a dedicated GPU bracket to significantly enhance shock and vibration resistance. Combined with its wide-range DC input and wide-temperature design, Nuvo-9154GC guarantees long-term stability in demanding AMR environments.

#Nuvo-9154GC #산업용PC #Fanless PC #GPUPC #Intel #팬리스컴퓨터 #물류자동화 #AMR

Specifications

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2] – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE
Chipset	Intel® Q670E Platform Controller Hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
Memory	Up to 128 GB DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0

I/O Interface

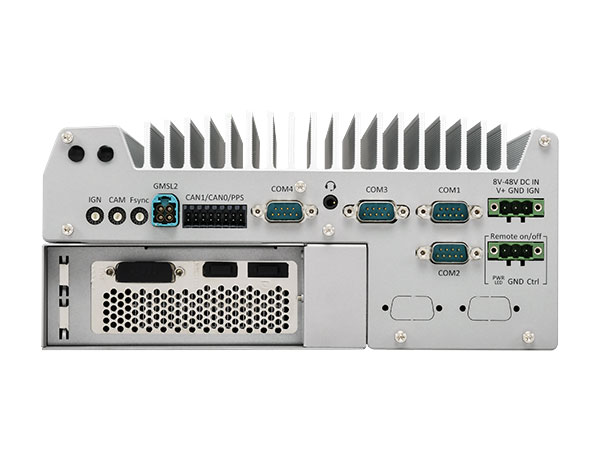

GMSL2	4x GMSL2 automotive cameras via 1x 4-port Mini-FAKRA Z connector, supporting selected GMSL2 camera configurations, including but not limited to: Configuration A: 2x 8MP + 1x 3MP @ 30 FPS Configuration B: 4x 5MP @ 30 FPS \| Configuration C: 4x 3MP @ 30 FPS Configuration D: 4x 2MP @ 60 FPS \| Configuration E: 4x 2MP @ 30 FPS
GPS PPS	1x isolated GPS PPS input 1x GPS PPS output 1x PPS LED (for debug)
CAN	2x CAN 2.0 with configurable CAN bus termination
Ethernet	5x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock
PoE+	IEEE 802.3at PoE+ PSE for Port 3 to Port 6. 100W total power budget

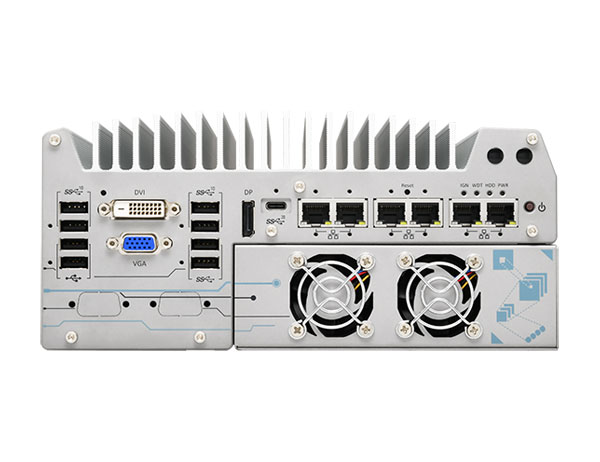

USB	1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports
Video Port (Integrated Graphics)	1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port	2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4)
Audio	1x 3.5 mm jack for mic-in and speaker-out

Storage Interface
SATA HDD	2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

Expansion Bus
PCI Express	1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 150W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation)
Mini-PCI Express	1x full-size mini PCI Express socket
M.2	1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module

Power Supply
DC Input	1x 3-pin pluggable terminal block for 8 to 48V DC input [1]
Remote Ctrl. & LED Output	1x 3-pin pluggable terminal block for remote control and PWR LED output
Ignition Control	15 pre-defined on/ off delay modes from panel rotary switch

Mechanical
Dimension	240 mm (W) x 225 mm (D) x 110.5 mm (H)
Weight	3.97 kg
Mounting	Wall-mount (standard) or damping bracket (optional)

Environmental
Operating Temperature	With 35W CPU and 150W GPU -25°C to 60°C[2][3] With 65W CPU and 150W GPU -25°C to 60°C[2][3] (configured as 35W TDP) -25°C to 50°C[2][3] (configured as 65W TDP)
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035

[1]The system is designed to tolerate 8V to 48V voltage fluctuation. The minimal voltage is required with different system configuration. For system with 35W CPU and 150W GPU, 12V or above DC voltage is recommended. For a system with a 65W CPU and 150W GPU, with or without additional PoE+ PD and/or high-watt PCIe cards, a DC voltage of 24V or above is recommended.

Alternatively, users may select an appropriate DC input voltage by considering both the 16A current limitation of the DC input connector and the total system power load.

[2]For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.

[3]For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.

LIST

Ordering Information

Nuvo-9154GC

Ruggedized GPU computer supporting 4x GMSL2 cameras, 150W NVIDIA® RTX GPU and Intel® BTL-S/ 14th/ 13th-Gen Core™ processor

Optional Accessories

Dmpbr-Nuvo9160

Neousys’ patented damping brackets assembly for Nuvo-9160GC

AccsyBx-Cardholder-9160GC-xx

Nuvo-9160GC GPU bracket kits for NVIDIA® RTX™ 2000 Ada, RTX 2000E Ada , RTX™ 4000 SFF Ada and other selected GPU. Please contact Neousys for more information.

PA-280W-ET2

280W AC/DC power adapter 24V/11.67A; 16AWG/100cm; cord end terminals for terminal block, operating temperature : -30°C to 60°C.

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.
