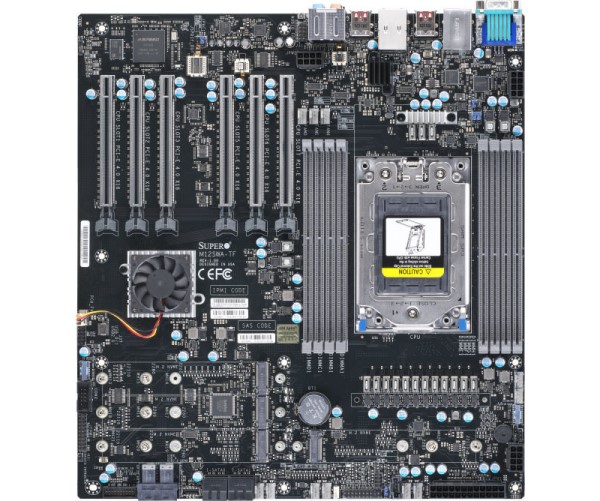

서버 마더보드 M12SWA-TF

Single Socket (AMD Threadripper™ PRO) 서버 마더보드 M12SWA-TF

서버 마더보드 M12SWA-TF

  • AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series
    Processor, up to 64 Cores
  • Up to 2TB (RDIMM) / 256GB (UDIMM), ECC/Non-ECC, Unbuffered,
    U-DIMM, R-DIMM, LRDIMM, and 3DS R-DIMM; 3200Mhz in 8
    DIMM slots
  • 6 PCI-E 4.0 x16 slots
    M.2 Interface: 4 PCI-E 4.0 x4 (Software RAID 0,1,5,10)
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-key
    U.2 Interface: 2 U.2 sockets (Software RAID 0,1)
  • 4 SATA 3.0 6Gbps (Software Raid 0,1,5 & 10)
  • 1x 10GBase-T LAN port,
    1 GbE LAN port (shared with IPMI)
  • ASPEED AST2600 BMC graphics
  • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps),
    5 USB 3.2 Gen2 ports
    (4 type A + 1 front type C header),
    5 USB 3.2 Gen1 ports
    (3 type A + 2 via header),
    2 USB 2.0 ports via header
  • 1 COM port (rear),
    TPM 2.0 header,7.1 Channel HD Audio
  • 10 fan header, 4-pin type fan header,
    112V-power header for liquid cooling
Specifications
Product SKUs
MBD-M12SWA-TF
  • M12SWA-TF



Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12″ x 13″ (30.48cm x 33.02cm)



Processor/Chipset
CPU
  • Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor Socket sWRX8/SP3 Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores



System Memory
Memory Capacity
  • 8 DIMM slots
  • ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory
  • RDIMM up to 2TB, UDIMM up to 256GB
  • 8-channel memory bus
Memory Type
  • ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory
  • DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Mhz
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)



On-Board Devices
Chipset
  • AMD WRX80
SATA
  • AMD WRX80 controller for 4 SATA3 (6 Gbps)ports, Software RAID 0,1,5,10
Network Controllers
  • 10G LAN: Single LAN via Marvell AQC113C 10Gb controller
  • 1GbE LAN: Single LAN via via Intel® i210AT controller (shared with IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Audio
  • ALC4050H + ALC1220 7.1 Channel HD Audio
Graphics
  • ASPEED AST2600 BMC
  • VGA connector is dedicated for IPMI



Input / Output
SATA
  • 4 SATA3 (6 Gbps) ports
LAN
  • 1 RJ45 10GBase-T LAN port
  • 1 RJ45 GbE LAN port (shared with IPMI)
USB
  • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
  • 5 USB 3.2 Gen2 ports (4 Type A, 1 Type C header, 10Gbps)
  • 5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
  • 2 USB 2.0 via header
VGA
  • 1 VGA port (dedicated for IPMI)
Others
  • 1 COM port (rear)
  • 1 TPM 2.0 header



Expansion Slots
PCI-E
  • 6 PCI-E 4.0 x16 slots
M.2



  • Interface: 4 PCI-E 4.0 x4
  • Form factor: 2280, 22110
  • Key: M-key
  • Software RAID 0,1,5,10 support
U.2



  • Interface: 2 U.2 Sockets
  • Software RAID 0,1 support



System BIOS
BIOS Type
  • AMI 256Mb Flash EEPROM



Management
Software
Power Configurations
  • ACPI Power Management
  • Power button override mechanism
  • Keyboard wakeup from S5
  • S3/S4



PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +3.3V, +12V, +3.3Vstb, +5Vstb, Vcore, Vmem
  • Supports system management utility
FAN
  • Up to 10 4-pin fan headers
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header



Operating Environment
Environmental Specifications
  • Operating Temperature:
    0°C to 50°C (32°F to 122°F)
  • Non-operating Temperature:
    -5°C to 55°C (23°F to 131°F)
  • FCC class B
