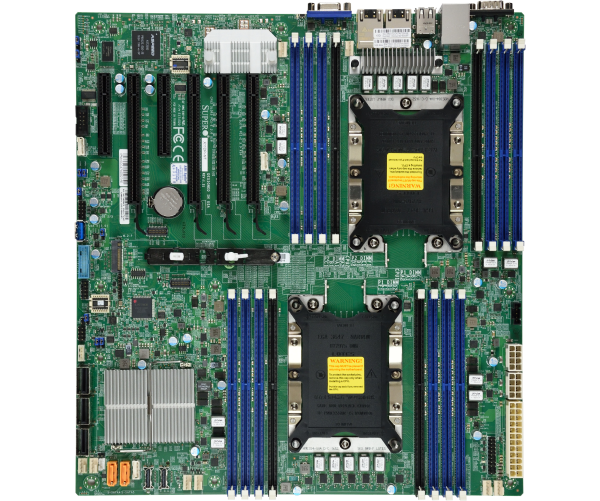

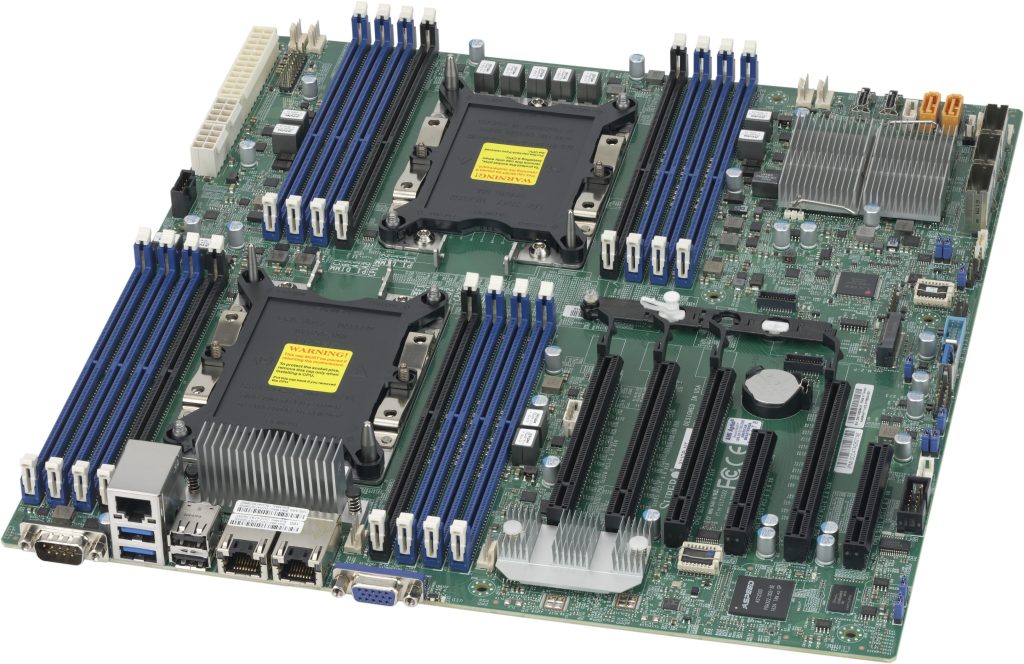

서버 마더보드 X11DPI-N

Dual Socket (2nd Gen Intel® Xeon® Scalable) 마더보드 X11DPI-N

서버 마더보드 X11DPI-N

  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon®
    Scalable Processors
    Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up
    to 205W TDP, 2 UPI up to 10.4 GT/s
  • Intel® C621
  • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC
    LRDIMM, DDR4-2933MHz
    Or 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots;
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode
    (Cascade Lake only);
  • 4 PCIe 3.0 x16,
    2 PCIe 3.0 x8
    2 PCIe 3.0 NVMe x4 Internal Port(s)
    M.2 Interface: PCIe 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key
  • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with 1GbE LAN with Intel® X722
  • 1 VGA port
Specifications
Product SKUs
  • MBD-X11DPI-N



Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12″ x 13″ (30.48cm x 33.02cm)



Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Core
  • Up to 28 cores
Note
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
System Memory
Memory Capacity



  • 16 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz
  • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 128GB
  • RDIMM: 64GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)



On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE LAN with Intel® X722



Input / Output
SATA
  • 14 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 4 PCIe 3.0 x16,
  • 2 PCIe 3.0 x8
M.2



  • M.2 Interface: PCIe 3.0 x4
  • Form Factor: 22110, 2280, 2260
  • Key: M-Key



System BIOS
BIOS Type
  • AMI UEFI



Management
Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog



PC Health Monitoring
Voltage
  • Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
Other Features
  • UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC, NCSI header



Operating Environment
Operating Temperature Range
  • 10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)
