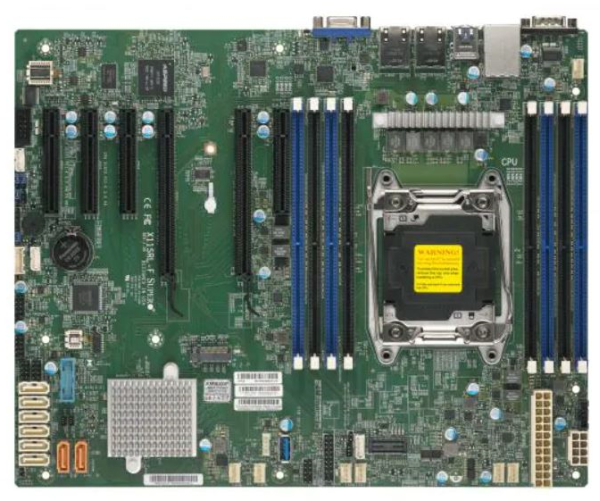

서버 마더보드 X11SRL-F

Single Socket ( Xeon® W-2200 ) 마더보드 X11SRL-F

서버 마더보드 X11SRL-F

  • Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200
    Processors, Single Socket LGA-2066 (Socket R4) supported, CPU
    TDP supports Up to 165W TDP
  • Intel® C422
  • Up to 512GB ECC RDIMM, DDR4-2933MHz; Up to 1TB Registered
    ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
  • 3 PCIe 3.0 x8,
    1 PCIe 3.0 x16,
    1 PCIe 3.0 x8 (in x16 slot),
    1 PCIe 3.0 x4 (in x8 slot)
  • M.2 Interface: 1 PCIe 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
    Double Height Connector
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
  • Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Specifications
Product SKUs
  • MBD-X11SRL-F



Physical Stats
Form Factor
  • ATX
Dimension
  • 12″ x 9.6″ (30.48cm x 24.38cm)



Processor
CPU
  • Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
  • Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
Core
  • Up to 18 cores, 36 threads
Note
  • W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro
  • To support 130W (or higher TDP) W-2200 CPUs, BIOS 2.0 & VRM update by Supermicro are required



System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 1TB ECC LRDIMM, DDR4-2933MHz; Up to 512GB ECC RDIMM, DDR4-2933MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors



On-Board Devices
Chipset
  • Intel® C422
SATA
  • Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller



Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 3 PCIe 3.0 x8,
  • 1 PCIe 3.0 x16,
  • 1 PCIe 3.0 x8 (in x16 slot),
  • 1 PCIe 3.0 x4 (in x8 slot)
M.2



  • M.2 Interface: 1 PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key



System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7



Management
Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection



PC Health Monitoring
Voltage
  • VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
  • Thermal Control for 6 Fan Connectors
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management



Operating Environment
Operating Temperature Range 0°C – 50°C (32°F – 122°F)
Non-Operating Temperature Range -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range 10% – 85% (non-condensing)
Non Operating Relative Humidity Range 10% – 95% (non-condensing)
