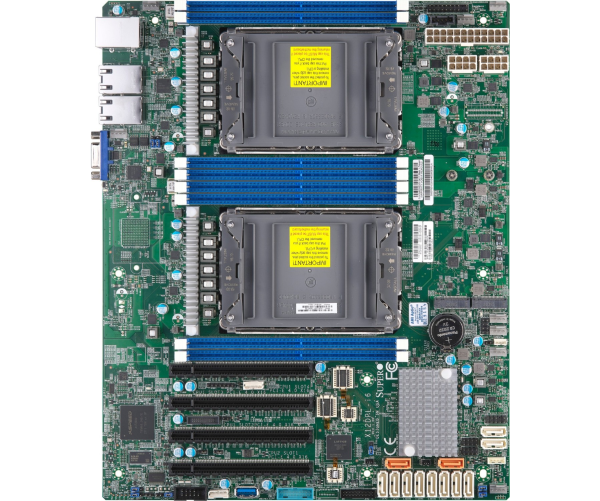

서버 마더보드 X12DPL-i6

Dual Socket (3rd Gen Intel® Xeon® Scalable) 마더보드 X12DPL-i6

서버 마더보드 X12DPL-i6

  • 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports
    Up to 185W TDP, 2 UPI up to 11.2 GT/s
  • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM,
    DDR4-3200MHz, in 8 DIMM slots
  • 4 PCIe 4.0 x16
    M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2280/22110, 2280
    M.2 Key: M-Key
  • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID
    0,1,5,10
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
  • 1 VGA port
Specifications
Product SKUs
  • MBD-X12DPL-i6



Physical Stats
Form Factor
  • ATX
Dimension
  • 12.23″ x 10″ (31.06cm x 25.4cm)



Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s



System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM
DIMM Sizes
  • 256GB
  • LRDIMM: 256GB
  • RDIMM: 256GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)



On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller



Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 4 PCIe 4.0 x16
M.2



  • M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4
  • Form Factor: 2280/22110, 2280
  • Key: M-Key, M-Key



System BIOS
BIOS Type
  • AMI UEFI



Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
  • IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
Power Configurations
  • ACPI Power Management



PC Health Monitoring
Voltage
  • Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
  • Overheat LED indication
Other Features
  • UID, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header



Operating Environment
Operating Temperature Range
  • 10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)
