서버 마더보드 X12SPI-TF

Single Socket (3rd Gen Intel® Xeon® Scalable) 마더보드 X12SPI-TF

서버 마더보드 X12SPI-TF

  • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-
    4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A
  • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-
    3200MHz
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8
    DIMM slots
  • 2 PCIe 4.0 x16,
    2 PCIe 4.0 x8,
    1 PCIe 4.0 x8 (in x16 slot),
    1 PCIe 4.0 NVMe x8 Internal Port(s)
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID
    0,1,5,10
  • Dual LAN with 10GBase-T with Intel® X550
Specifications
Product SKUs

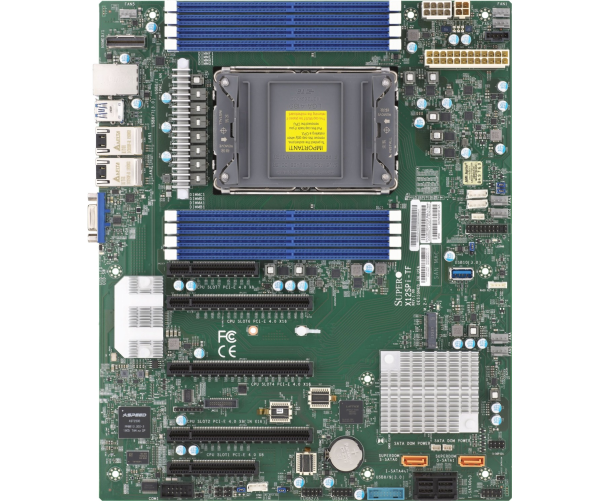

  • X12SPi-TF.jpg



Physical Stats
Form Factor
  • ATX
Dimension
  • 12.1″ x 10″ (30.73cm x 25.4cm)



Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores



System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type
  • ECC , DDR4 LRDIMM, RDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors



On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550



Input / Output
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 2 PCIe 4.0 x16,
  • 1 PCIe 4.0 x8 (in x16 slot),
  • 2 PCIe 4.0 x8
M.2



  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key



System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7



Management
Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection



PC Health Monitoring
Voltage
  • VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • UID, RoHS, Dual Cooling Zones, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT, NCSI header
  •



Operating Environment
Operating Temperature Range 0°C – 50°C (32°F – 122°F)
Non-Operating Temperature Range -20°C – 60°C (-4°F – 140°F)
Operating Relative Humidity Range
  • 10% – 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% – 95% (non-condensing)
