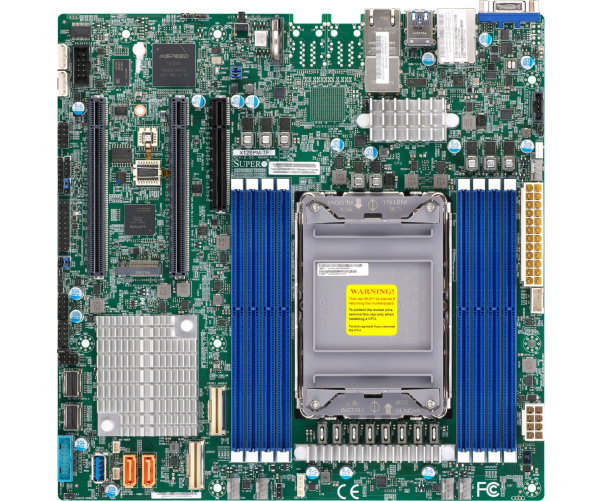

서버 마더보드 X12SPM-TF

Single Socket (3rd Gen Intel® Xeon® Scalable) 마더보드 X12SPM-TF

서버 마더보드 X12SPM-TF

  • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-
    4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC
    LRDIMM, DDR4-3200MHz
    Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8
    DIMM slots
  • 1 PCIe 4.0 x8,
    2 PCIe 4.0 x16,
    4 PCIe 4.0 NVMe x4 Internal Port(s)
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
    4x NVMe port PCIe 4.0 x4 via SlimSAS connector
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID
    0,1,5,10
  • Dual LAN with 10GBase-T with Intel® X550
  • Supports 12V DC power input
  • 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear,
    4 via headers)
Specifications
Product SKUs
  • BD-X12SPM-TF



Physical Stats
Form Factor
  • microATX
Dimension
  • 9.6″ x 9.6″ (24.38cm x 24.38cm)



Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
  • Up to 40 cores



System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
  • ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM 3DS: 128GB, 256GB
  • LRDIMM: 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage 1.2V
Error Detection
  • Corrects single-bit errors



On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550



Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10GBase-T ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
  •
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header



Expansion Slots
PCI-E
  • 2 PCIe 4.0 x16,
  • 1 PCIe 4.0 x8
M.2



  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key



System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later



Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management



PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 5 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • System level control
  • PWM fan speed control
  • 5 fans with tachometer status monitoring
  • Pulse Width Modulated (PWM) fan connectors
Other Features
  • WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management



Operating Environment
Operating Temperature Range
  • 0°C – 60°C (32°F – 140°F)
Non-Operating Temperature Range
  • -20°C – 60°C (-4°F – 140°F)
Operating Relative Humidity Range
  • 10% – 85% (non-condensing)
  •
Non-Operating Temperature Range
  • 10% – 95% (non-condensing)
